The DriFlow system is the most reliable and advanced dry friction reducer delivery platform on the market — engineered for every frac job, from single-well operations to complex simul-frac operations.

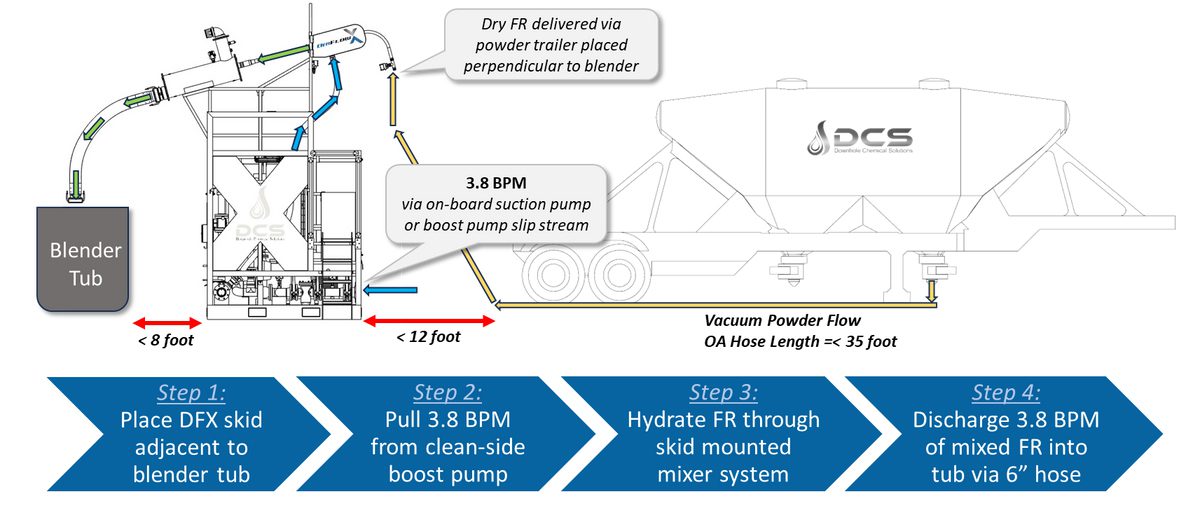

The DriFlow platform includes the DriFlow mixing equipment, the DriFlow operations team, and the DriFlow dry friction reducer chemicals. The equipment & service model is largely the same; we like to say the beauty is in the simplicity! Robust equipment, simple operation, expert utilization of technology, and highly trained operators yield the best overall service. See below for how it works on location!
Note: The DriFlow 4.X unit is shown above. All DriFlow units share the same core functionality — the 2.X and 3.X models add additional discharge options (suction-side, discharge-side) on top of the standard blender tub connection.
The DriFlow platform adapts to your operational model — choose the service package that fits your job, your crew, and your budget.
24/7 on-location DCS DriFlow operators ensure the most comprehensive turn-key service solution. Our team manages all things from start to finish on the job site.
The same full service package as our manned operation, but with tablet-centric operations from the data-van, and enhanced oversight from our Remote Operations Center.
Whether you're running manned or unmanned, you get the same core infrastructure — inventory management, ROC oversight, lab analytics, and data visibility — from day one.
The unmanned model removes the on-location technician and a handful of configuration options, delivering the core DriFlow service at a lower cost per pound. It's the same platform, the same reliability, and the same DCS team behind it.

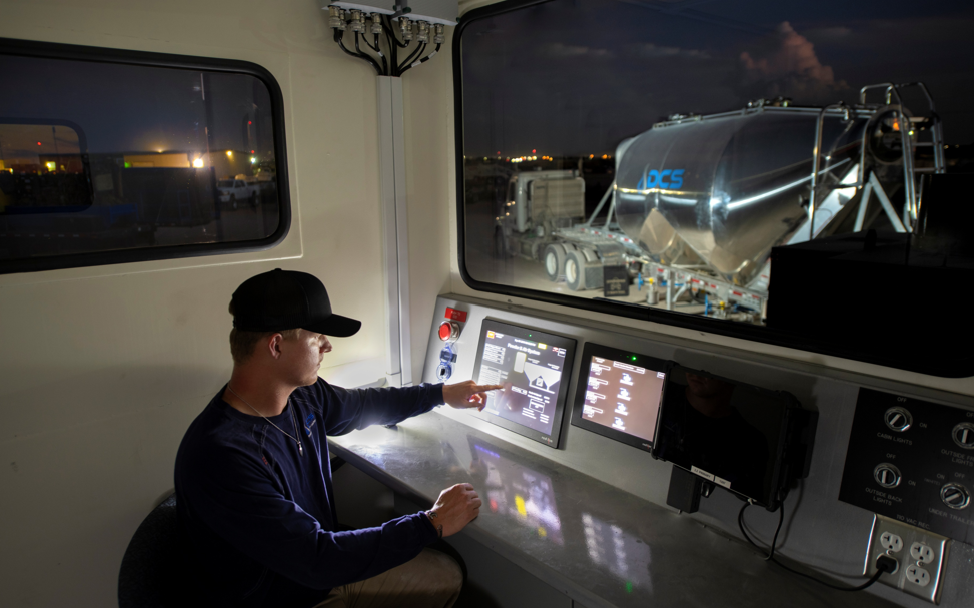

For manned operation, DCS's DriFlow operator ensures optimal on-location service.

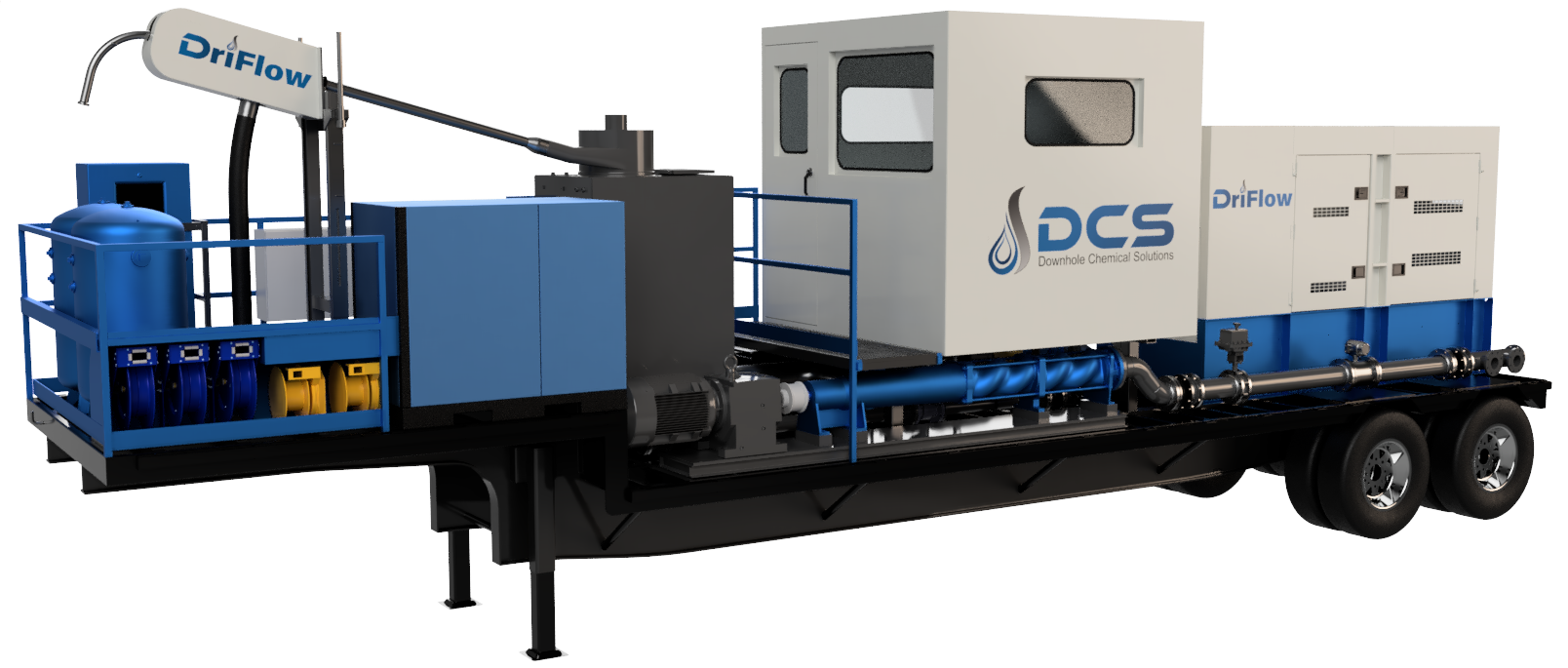

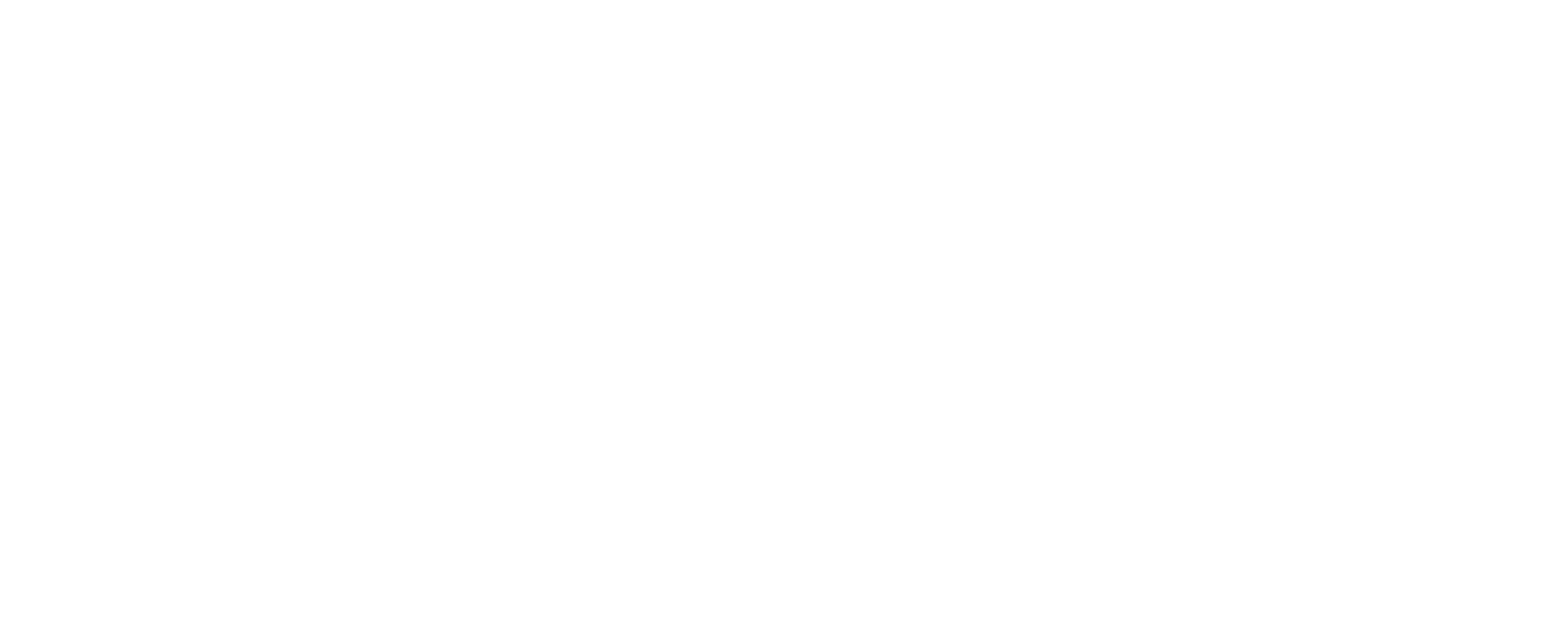

DriFlow 2.X Series Unit

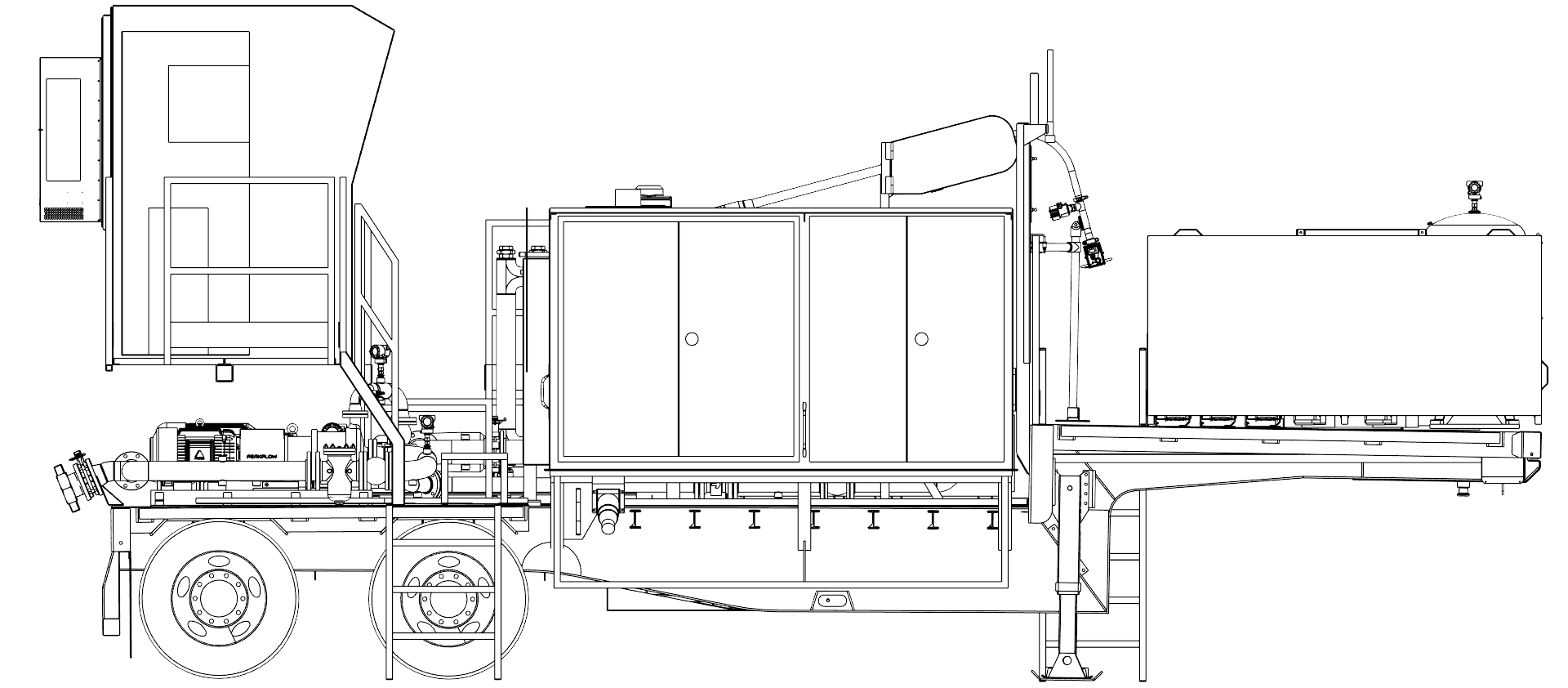

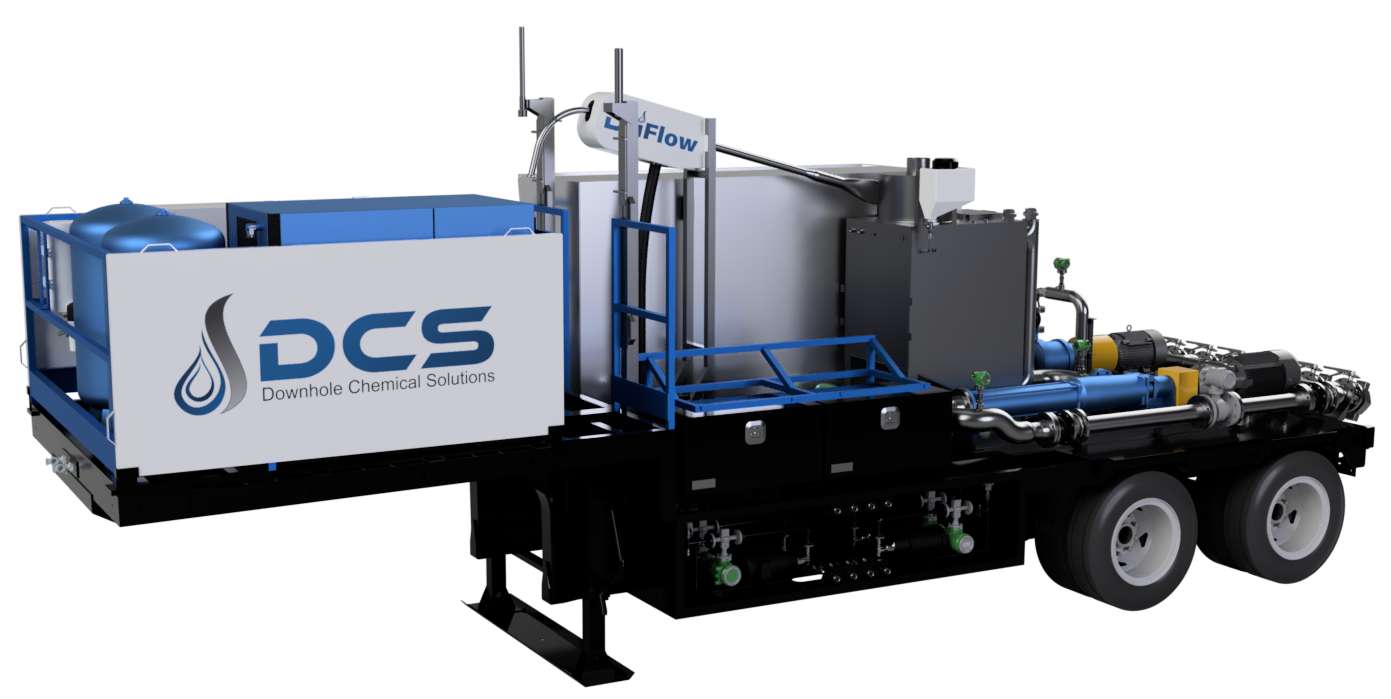

DriFlow 3.X Series Unit

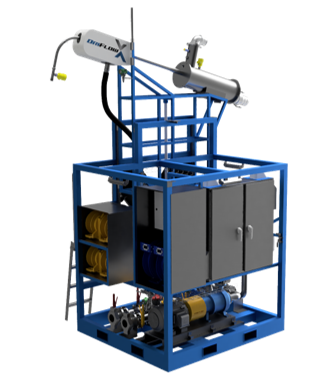

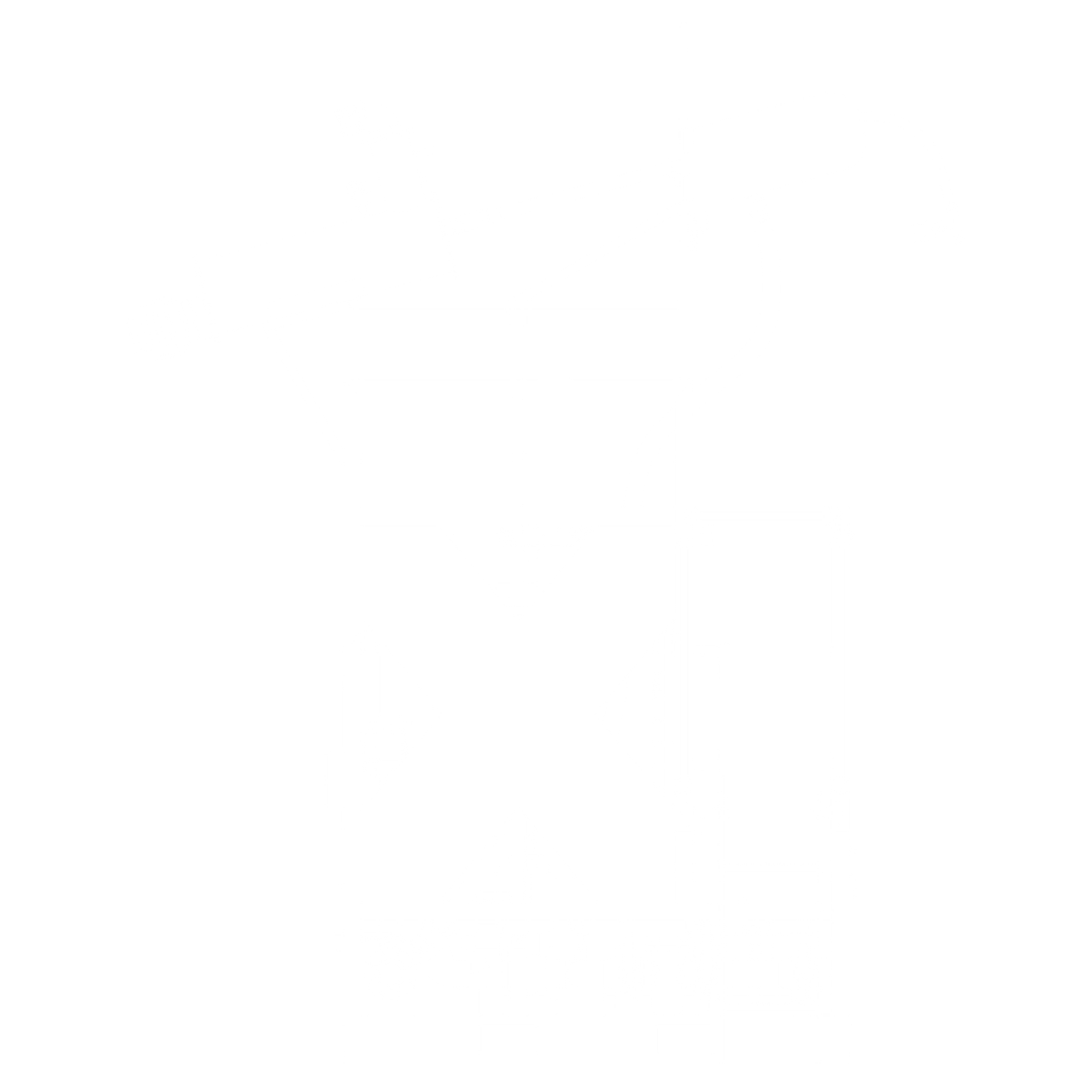

DriFlow 4.X Series Unit
DriFlow Pneumatic Trailer
| Service | Manned | Unmanned |
|---|---|---|
| 24/7 On-Location Support | ✓ | — |
| Complete Inventory Management | ✓ | ✓ |
| Equipment Transport & Rig-Up | ✓ | ✓ |
| Real-Time Remote Support (ROC) | ✓ | ✓ |
| Field Technical Support | ✓ | ✓ |
| Lab & Engineering Analytical Services | ✓ | ✓ |
| Data Analytics Dashboard | ✓ | ✓ |
| Dust-Free Operation | ✓ | ✓ |
| Injection Point: Suction-Side | ✓ | ✓ |
| Injection Point: Blender Tub | ✓ | ✓ |
| Injection Point: Discharge-Side | ✓ | — |
| Ability to Pump Treating Chemicals | ✓ | — |
| FR to Clean & Dirty Sides | ✓ | — |
| Explore Compatible DriFlow Units |
Every DriFlow unit is supported by purpose-built ancillary equipment — engineered as a system, not an afterthought.

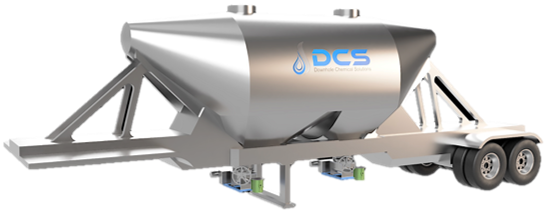

Bulk dry chemical transport & on-location storage, ready to deliver product. The PT is equipped with dual augers & conditioning equipment to deliver dry FR or guar. The dispensed product is vacuumed into the DriFlow unit's mixer, keeping the process dust-free & continuous throughout the job.
Hover to flip ↻
Simultaneous mixed dry FR delivery to two independent frac splits from a single DriFlow 2.X unit. Engineered for simul-frac operation, the Multi-Stim system eliminates the need for a second unit on simul-frac operations without compromising rate or control on either split.
Hover to flip ↻

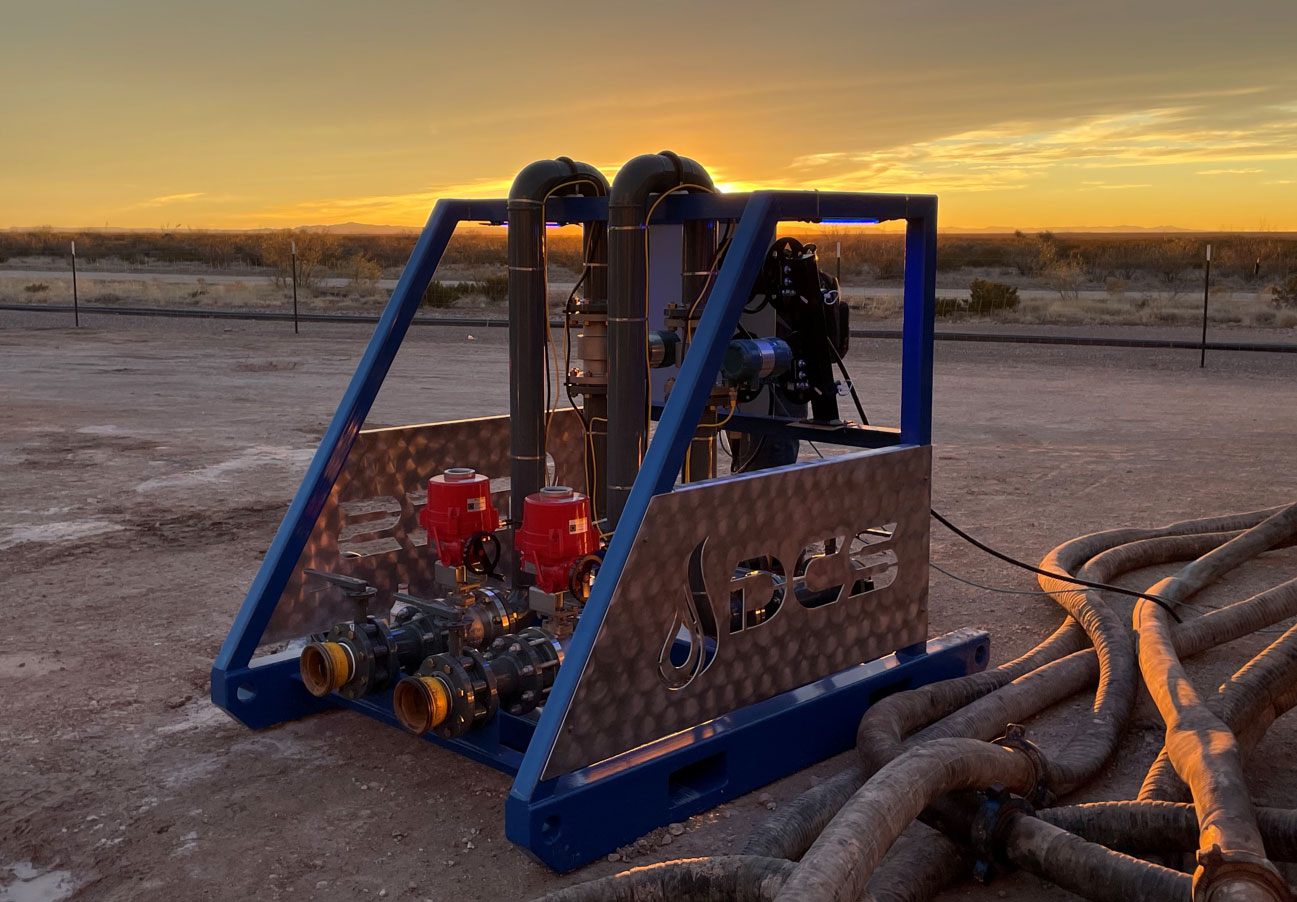

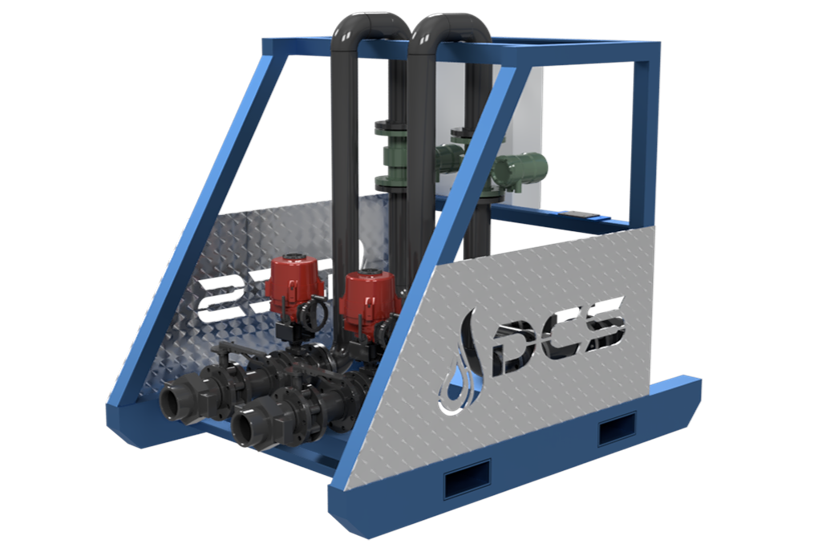

Multi-Stim™ Unit

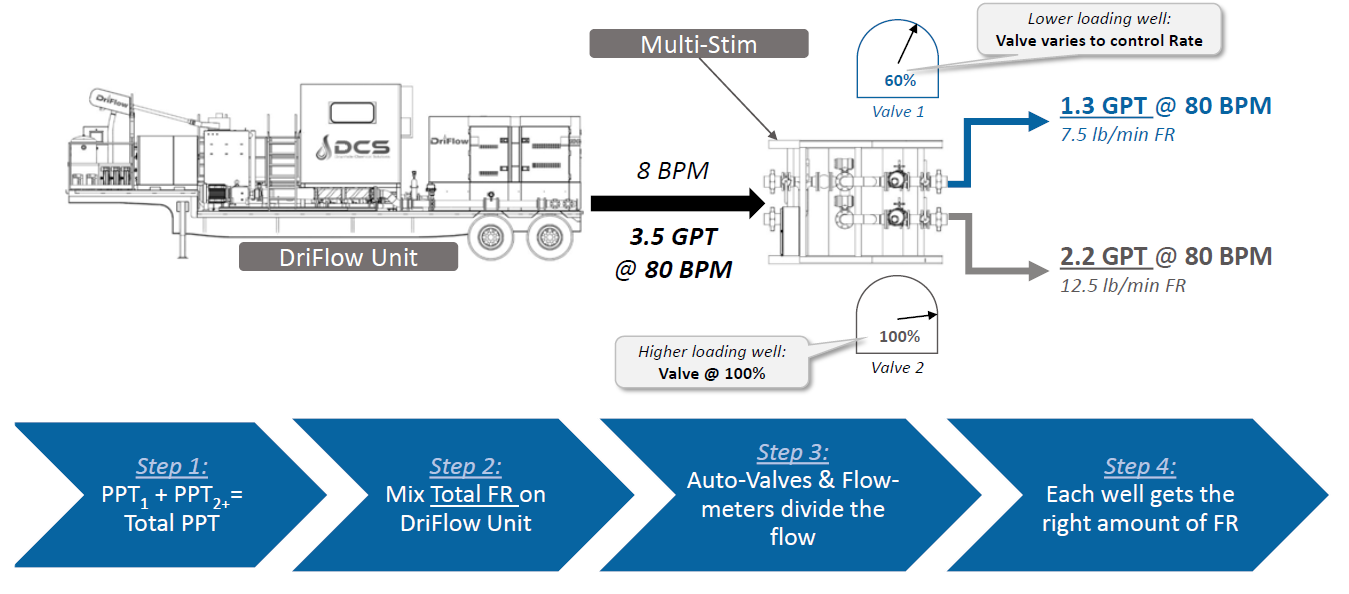

Multi-Stim™ Operating Method

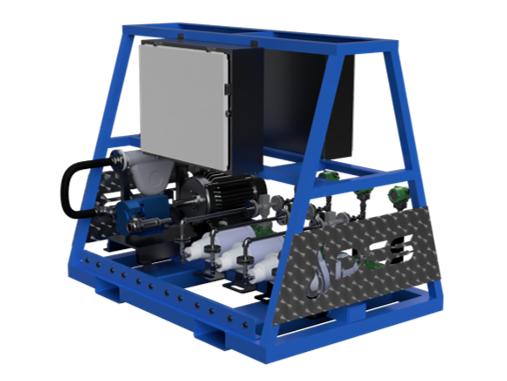

An engineered liquid chemical pumping skid for operations not yet ready to transition to dry FR. Equipped with redundant liquid FR pumps and precision ancillary chemical pumps to handle any treating chemical — at any concentration.
Hover to flip ↻

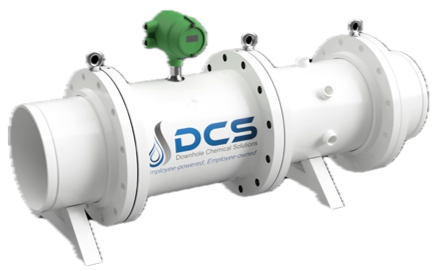

A key component of the CFM system — designed to inject chemicals upstream of the frac tanks, independent of frac rate. Purpose-built with industry-standard water transfer connections, a dedicated flow meter, and multi-point injection quills.
Hover to flip ↻
An add-on skid that expands the DriFlow 4.X into the full discharge capabilities of a 3.X unit. The ultimate footprint-flexibility solution — same core performance, fraction of the space.
Hover to flip ↻
Pump Skid
With DriFlow 4.X Unit
DCS has deep operational experience across all key domestic onshore operating basins and shale plays. From the Permian and Eagle Ford to the Marcellus, Utica, Haynesville, DJ, Bakken, and beyond — the DriFlow platform has been proven in the harshest water chemistries, the most demanding simul-frac environments, and the widest range of operating conditions in the industry. Wherever you operate, DCS has been there.
Proprietary dry polyacrylamide-based friction reducers engineered for superior dispersion, rapid hydration, and consistent performance across variable water chemistries.
| Product | FR Charge & Type | Application Description | Documents |
|---|---|---|---|
| DriFlow 4 | Anionic dry VFR | fresh – low TDS water | PDS ↓ SDS ↓ |
| DriFlow 10 | Anionic dry VFR | low – moderate TDS water | PDS ↓ SDS ↓ |
| DriFlow 12 | Anionic dry VFR | moderate – high TDS water | PDS ↓ SDS ↓ |
| DriFlow 14 | Anionic dry VFR | high – extreme TDS water | PDS ↓ SDS ↓ |
| DriFlow 105 | Cationic dry VFR | high – extreme TDS water | PDS ↓ SDS ↓ |
Dry guar-based viscosifiers for hybrid frac applications. Delivered and metered via the DriFlow platform for consistent, precise dosing without tote handling.
CFM ties DriFlow delivery into a system-level operational strategy — fewer trucks, smaller footprint, digital optimization, and predictable chemical costs across the entire pad.
Bulk dry chemical storage and pneumatic conveyance — the backbone of the DriFlow system
Simultaneous mixed dry FR delivery to two independent frac splits from a single DriFlow 2.X unit
Multi-Stim™ Unit
Multi-Stim™ Process
Engineered liquid chemical pumping for operations not yet ready to transition to dry FR
Upstream chemical injection independent of frac rate — a key component of the CFM system
Expands the DriFlow 4.X into the full discharge capabilities of a 3.X unit — maximum flexibility, minimum footprint

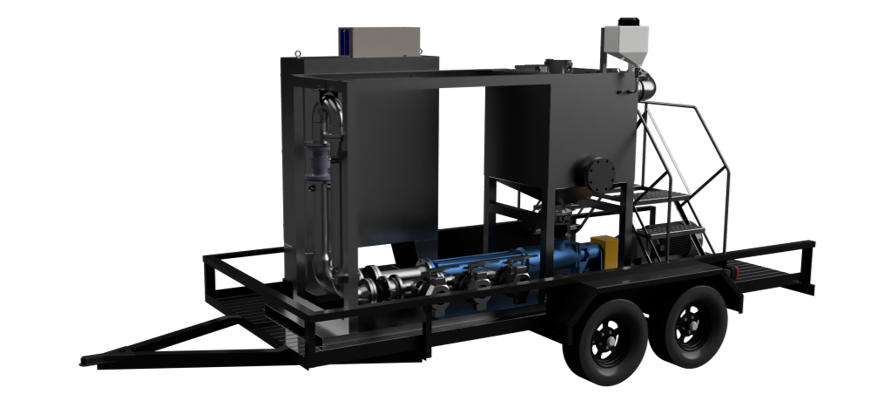

Pump Skid

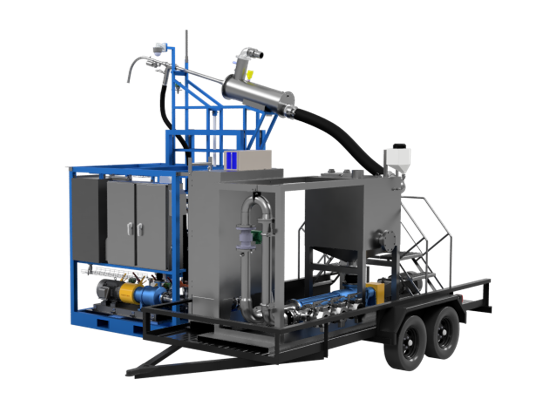

Pump Skid with DriFlow 4.X Unit
Operating specifications across all DriFlow unit generations
|
|
|
|
|---|---|---|---|
| Specification | DriFlow 2.X | DriFlow 3.X | DriFlow 4.X |
| Water Flow Rate | 8 BPM | 3.6 BPM | 3.6 BPM |
| On-Board Buffer Volume | 9 BBL | 4.5 BBL | N/A |
| Max Loading @ 100 BPM | 18 PPT (75 lb/min) | 12 PPT (50 lb/min) | 12 PPT (50 lb/min) |
| Power Requirement | Integrated 180 kVA Generator | 480V, 125 kVA required | 480V, 45 kVA required |
| E-Fleet Capable | Yes | Yes | Yes |
| Footprint | 40' × 8.5' — 45,000 lbs | 28' × 8.5' — 25,000 lbs | 7' × 6.5' — 9,000 lbs |
| Injection Points | Discharge, Suction, or Tub | Discharge, Suction, or Tub | Blender Tub Only |
| Control Method | Operator Control | Operator Control | Operator or Unmanned |
